In my spare time, I dabble in electronics. I really enjoy working with microcontrollers (like the Ubicom 8bit SX series),
and learning about computer hardware design, and signal processing/generation (like NTSC). Although most of it is just for experimentation,
I've completed a few projects that I think are worth showcasing.
|
Breadboard Pong Console
Project Details:  Based on an 8-bit RISC microcontroller (runs at 80MHz) Outputs (monochrome) NTSC video signals Custom made 4-bit DAC (resistor array, "R2R ladder") Capable of outputting varying shades of grey Accepts input from NES gamepads, and Atari joysticks Plays pong! |
|

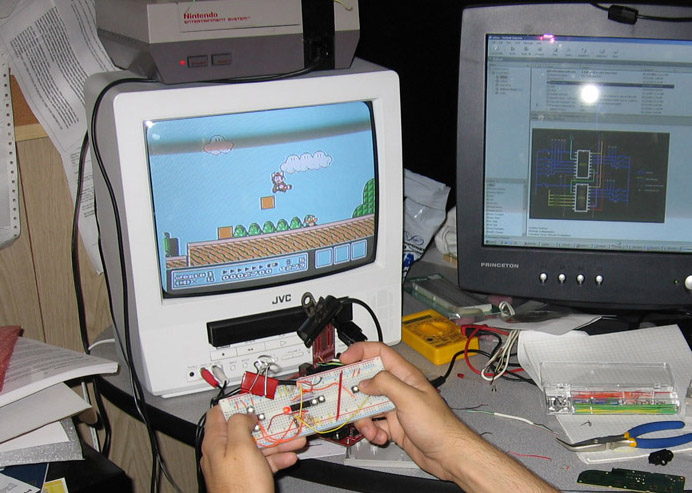

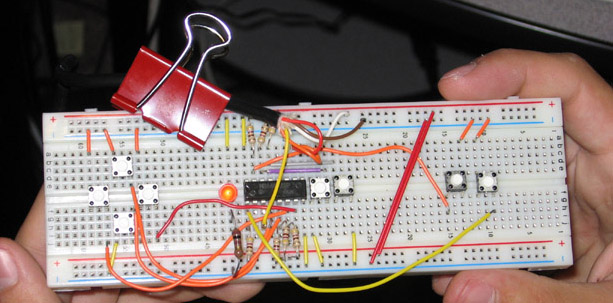

NES controller (re-construction)
Project Details: Based on 4021 8-bit shift register Push switches used as buttons Works with actual NES |
